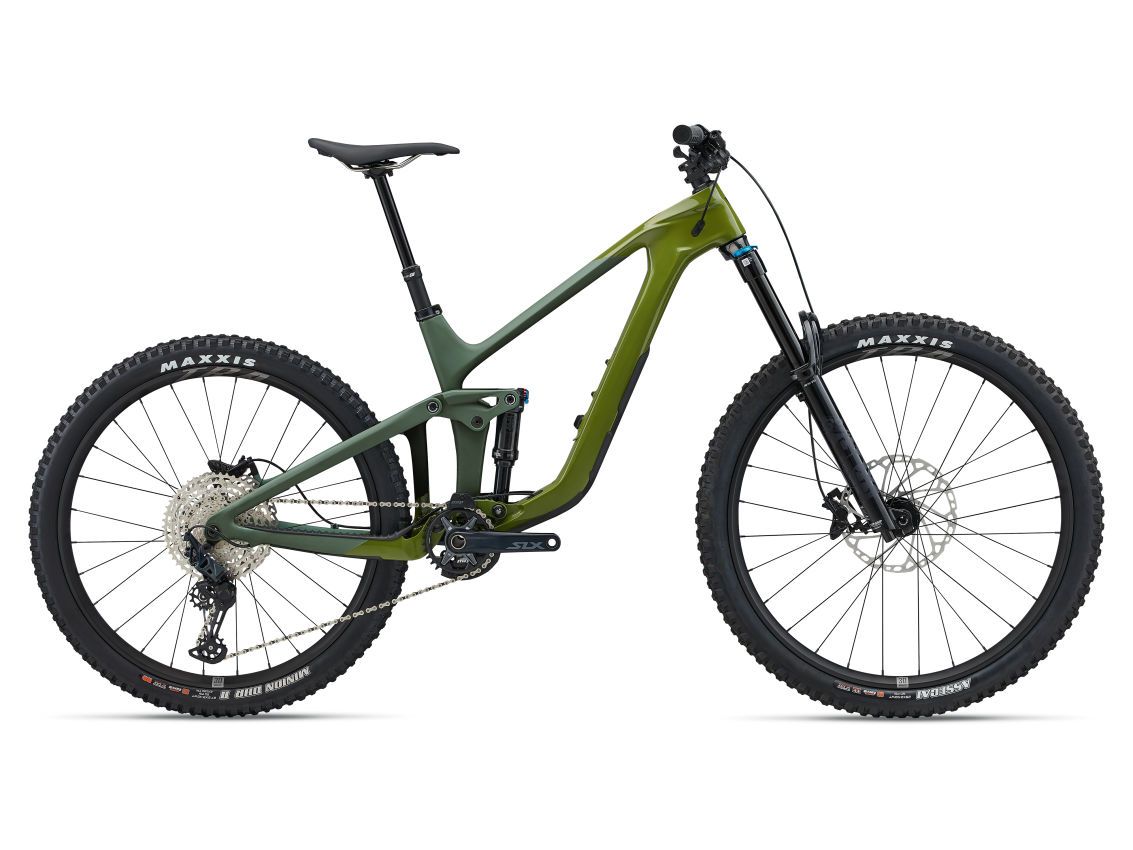

Giant Reign Advanced 2

Race-bred suspension

A Maestro rear suspension system with 160mm of travel, paired with a 170mm fork, was developed and tested under the extreme conditions of Enduro World Series races. The trunnion mount shock has a longer stroke (62.5mm compared to 60mm on the previous generation). And the Advanced Forged Composite upper rocker arm adds stiffness and lowers overall weight.

Adjustable enduro geometry

Flip chip technology lets you switch between three settings depending on the terrain. You can select a 62.47, 63.09 or 63.46- degree head angle and corresponding 77.54, 77.89 or 78.26-degree seat tube angle, resulting in a 29, 24 or 19mm bottom bracket drop (size medium) to fine- tune handling for trail conditions, riding style and rear-wheel size.

Rear wheel options

Riders can choose either the stock 27.5-inch rear wheel or switch to 29. The larger 29-inch option improves stability and roll-over capabilities, while 27.5 delivers a more agile, snappier feel. It’s a quick and easy way to adjust the bike’s handling and feel.

• Sizes
  S, M, L, XL
• Colours
  Dried Matcha
• Frame
  Advanced-grade composite front and rear triangles, 160mm Maestro suspension, flip chip, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, integrated down tube storage
• Fork
  Fox 38 Rhythm, 170mm, GRIP damper, 15x110 Kabolt X, 44mm offset
• Shock
  Fox Float Performance, 205/62.5, custom tuned for Giant
• Handlebar
  Giant Contact TR35, 800x35mm, 35mm rise
• Grips
  Giant Tactal Pro Single
• Stem
  Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm
• Seatpost
  Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm
• Saddle
  Giant Romero SL
• Pedals
• Shifters
  Shimano SLX SL-M7100, 1x12
• Front Derailleur
  N/A
• Rear Derailleur
  Shimano SLX RD-M7100
• Brakes
  Shimano BR-MT520, hydraulic, Shimano RT-66 rotors [F]220mm, [R]200mm
• Brake Levers
  Shimano Deore BL-MT501
• Cassette
  Shimano Deore M6100, 10x51
• Chain
  Shimano
• Crankset
  Shimano SLX, 32t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
• Bottom Bracket
  Shimano, press fit
• Rims
  Giant TRA WheelSystem, 6069 alloy, welded, 30mm IW, 40mm OW, 21mm H, Wide Guard technology, [F] 29, [R] 29
• Hubs
  [F] Giant MTB alloy, six-bolt, [R] Giant MTB alloy, 72 POE (Points of Engagement), six-bolt, MicroSpline driver body
• Spokes
  Sapim, 28, straight pull, DBL Technology
• Tires
  [F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 27.5x2.4 WT, 3C MaxxTerra, DD, TR tubeless
• Extras
  tubeless prepared, 2.5" max tire size, 36t max chainring size, MRP AMG CS chain guide, 3M tailgate protector
