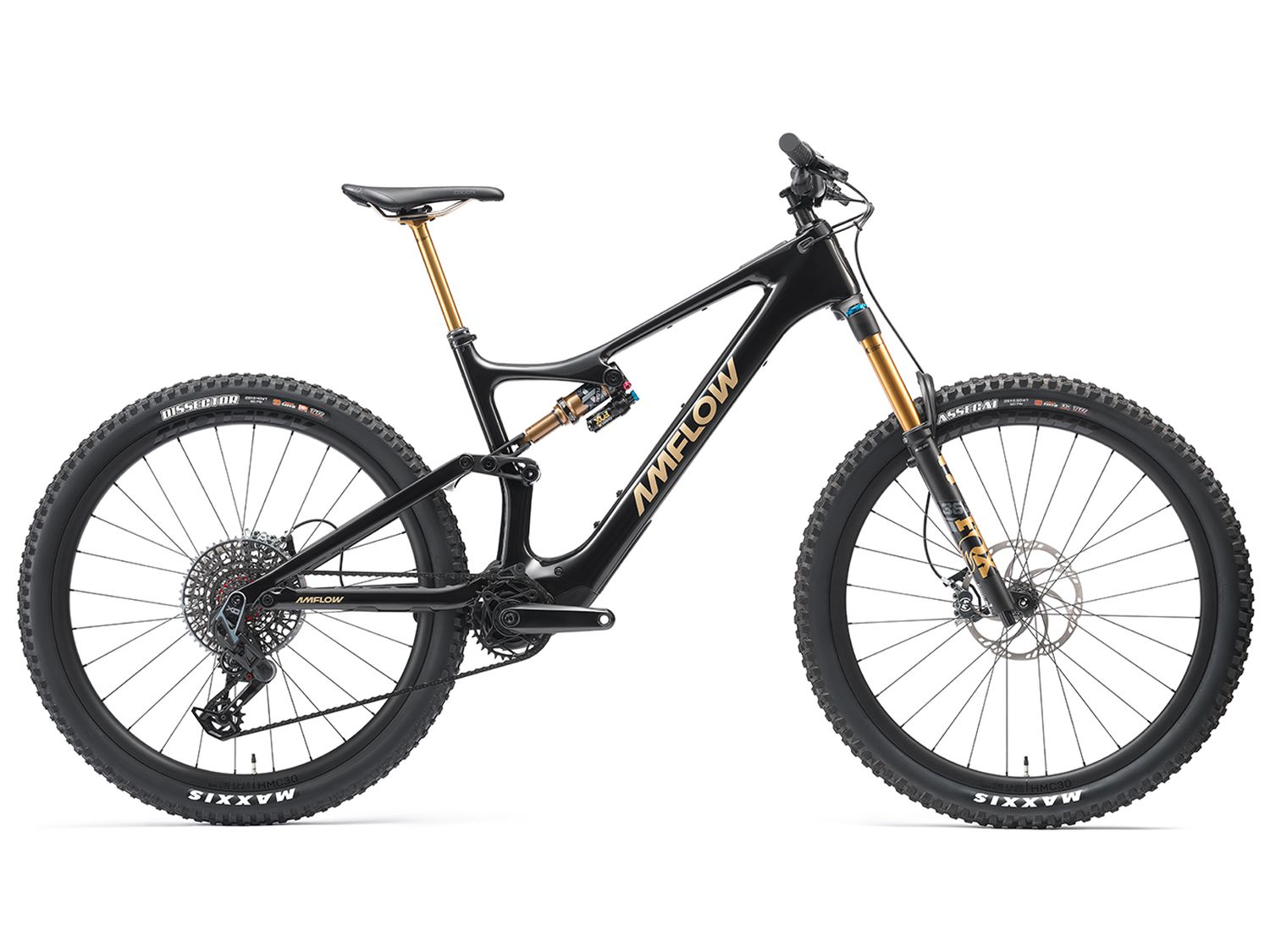

The Amflow PL series offers an unrivalled combination of power, range, and weight. Packed with innovative and seamlessly integrated technology, this electric mountain bike is built to deliver the ultimate ride.
105N·m Torque, Smooth and Powerful Output
The Avinox M1 Drive Unit is compact yet capable of delivering robust power, making it ideal for challenging climbs.
Built-in Display, Smartphone Connectivity
The 2-inch OLED touchscreen displays real-time riding data such as speed and cadence. Users can also activate password authentication and abnormal movement alerts on the Avinox app.
All-round Frame Design
The rear shock, co-tuned with FOX and paired with an advanced four-bar linkage design, delivers a handling experience that is both agile and responsive.
Lightweight Complete Build
The superlight carbon fiber frame combined with the compact Avinox M1 Drive Unit enables fast and agile riding.
800Wh Battery, 3x Fast Charge
The fast charger is light and portable, capable of charging the battery from 0% to 75% in approx. 1.5 hours. 2
New Intelligent Walk Assist
Featuring Auto Hold to prevent rollback on slopes, the bike also supports Hill Start Assist and stationary gear shifting for a smooth and intuitive experience.
Frame | Amflow PL Carbon |
Suspension | Suspension |
Fork | FOX 36 Factory GRIP X2 160mm 44mm |
Shock | FOX Float X Factory EVOL Air Trunnion 185×55mm 2-pos w/ LSC adj. |
Brakes | Brakes |
Brakes | Magura MT7 Pro HC Lever 4-piston caliper |
Brake Rotors | Magura Storm HC 6-bolt 203mm |
Drivetrain | Drivetrain |
Derailleur | SRAM X0 Eagle Transmission Derailleur w/ power cable |
Shifter | SRAM AXS Pod Controller |
Cassette | SRAM XS-1295 Eagle Transmission 10-52T |
Chain | SRAM X0 Eagle Transmission Flattop Chain |
Avinox E-System | M1 Drive Unit 105Nm, Integrated Battery 800Wh, 2in OLED Control Display, Wireless Controllers |
Crankset | DJI Avinox SL Crank (M-L:155mm; XL-XXL:160mm) |
Tensioner / Guide | Quick Start Guide |
Controls | Controls |
Handle Bar | Amflow Enduro Carbon Rise 25mm Width 800mm |
Stem | Amflow Enduro 35mm Length 35mm |
Grips | Amflow Enduro |
Headset | N/A |
Saddle | Ergon SM PRO M/L |
Dropper Post | Fox Transfer Factory (M:125-150mm, L-XL:155-180mm, XXL:185-210mm) |
Dropper Lever | N/A |
Wheels | Wheels |
Wheelset | Amflow HMC-30 (Carbon Rims, Sapim E-Lite Spokes) |
Front Tire | Maxxis Assegai MaxxTerra 3C EXO E-25 TLR 29×2.5" WT |
Rear Tire | Maxxis Dissector MaxxTerra 3C EXO+ E-25 TLR 29×2.4" WT |
