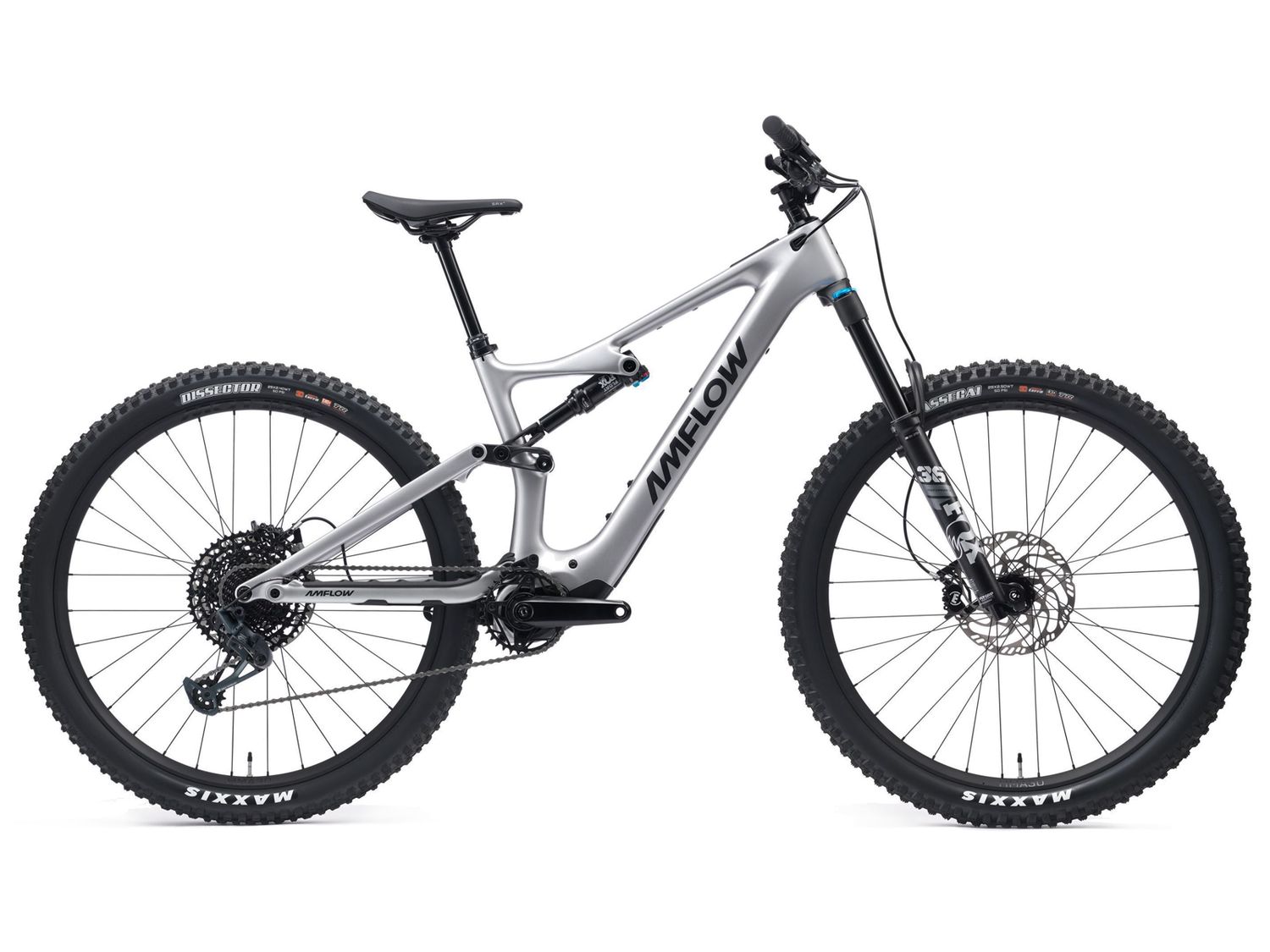

The Amflow PL series offers an unrivaled combination of power, range, and weight. Packed with innovative and seamlessly integrated technology, this electric mountain bike is built to deliver the ultimate ride.
105N·m Torque, Smooth and Powerful Output
The Avinox M1 Drive Unit is compact yet capable of delivering robust power, making it ideal for challenging climbs.
Built-in Display, Smartphone Connectivity
The 2-inch OLED touchscreen displays real-time riding data such as speed and cadence. Users can also activate password authentication and abnormal movement alerts on the Avinox app.
All-round Frame Design
The rear shock, co-tuned with FOX and paired with an advanced four-bar linkage design, delivers a handling experience that is both agile and responsive.
Lightweight Complete Build
The superlight carbon fiber frame combined with the compact Avinox M1 Drive Unit enables fast and agile riding.
800Wh Battery, 3x Fast Charge
The fast charger is light and portable, capable of charging the battery from 0% to 75% in approx. 1.5 hours. 2
New Intelligent Walk Assist
Featuring Auto Hold to prevent rollback on slopes, the bike also supports Hill Start Assist and stationary gear shifting for a smooth and intuitive experience.
Frame | Amflow PL Carbon |
Suspension | Suspension |
Fork | Fox 36 Performance GRIP 160mm 44mm |
Shock | FOX Float Performance EVOL Air Trunnion 185×55mm 2-pos |
Brakes | Brakes |
Brakes | Magura MT5 HC Lever 4-piston caliper w/ Shiftmix 3 |
Brake Rotors | Magura MDR-C 6-bolt 203mm |
Drivetrain | Drivetrain |
Derailleur | SRAM GX Eagle 12sp |
Shifter | SRAM GX Eagle Trigger Shifter|Single Click |
Cassette | SRAM PG-1230 11-50T |
Chain | SRAM NX Eagle |
Avinox E-System | M1 Drive Unit 105Nm, Integrated Battery 800Wh, 2in OLED Control Display, Wireless Controllers |
Crankset | DJI Avinox SL Crank (M-L:155mm; XL-XXL:160mm) |
Tensioner / Guide | Quick Start Guide |
Controls | Controls |
Handle Bar | Amflow Enduro Alloy Rise 35mm Width 800mm |
Stem | Amflow Enduro 35mm Length 35mm |
Grips | Amflow Enduro |
Headset | N/A |
Saddle | Selle Royal SRX Plus |
Dropper Post | KS Rage-i (M:150mm, L:170mm, XL-XXL:190mm) |
Dropper Lever | N/A |
Wheels | Wheels |
Wheelset | Amflow HMA-30 (Allow Rims, Sapim E-Lite Spokes) |
Front Tire | Maxxis Assegai MaxxTerra 3C EXO E-25 TLR 29×2.5" WT |
Rear Tire | Maxxis Dissector MaxxTerra 3C EXO+ E-25 TLR 29×2.4" WT |
